p5.js IMU Workshop

During this workshop, you will start from a p5.js starter template and connect it to data from an inertial measurement unit (IMU).

Goals:

• See an example of using code from a JavaScript library.
• Gain more familiarity with functions and variables.
• Use console.log to inspect data.
• Write code that uses sensor data sent over the network.
• Get started on the physical computing aspect of your project.

A. Create a new p5.js project

In this section, you will create a project folder that contains the index.html and sketch.js files needed to run a p5.js sketch. These steps are similar to the Setting up an IMU workshop, but Visual Studio Code is already configured.

1. Open a terminal window. Use cd if you need to move to the directory where you want to create the project. Running cd without a path moves to your home directory.
2. In the terminal, run git clone https://github.com/osteele/p5-module-template.git imu-workshop. This command creates a local folder named imu-workshop with the files for a minimal p5.js sketch.
3. In Visual Studio Code, open the imu-workshop folder.

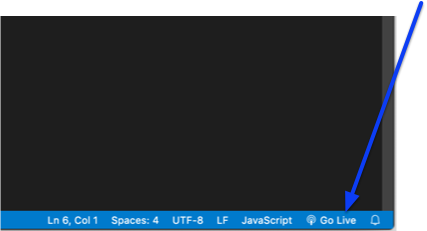

4. In Visual Studio Code, click the “Go Live” button.

5. Modify sketch.js so that something appears on the screen.

B. Subscribe to sensor data

We will use the imu-tools npm package to receive IMU data from a network server. Add the package to the project, then configure the server address.

1. Follow the instructions on the imu-tools project page to add the package to your project.

Note: You will need to add lines to both index.html and sketch.js.

Note: Complete the instructions in both the Usage and Connection Settings Control Panel sections of the imu-tools project page.

2. Enter the MQTT connection settings from this page.

3. Verify that data is being printed to the JavaScript Console. (In Chrome: View > Developer > JavaScript Console).

C. Examine the data

Each sample from the device is printed to the JavaScript console. This confirms that data is arriving, but the continuous output makes a single sample difficult to inspect.

We will fix this in these steps.

These steps describe the intended behavior without giving you code to copy. Write the JavaScript yourself so that you can practice applying the same skills elsewhere.

1. data => console.log('sample', data) is an anonymous function, which means it has no name. Replace it with a named function called handleSensorData. Use function to define it with a data parameter, then call console.log in the function body.
2. Introduce a global variable (a variable that is defined outside of any function), that keeps track of whether this is the first time that handleSensorData has been run.
   • Pick a name for the variable, and use a let statement to define the variable and initialize it to false.
   • Modify handleSensorData to change the variable’s value to true.
3. Finally, add an if statement to the function so that it only runs console.log the first time it is run.
4. Now, the sketch should only print the sample data once. Inspect this value in the JavaScript console.

D. “Zoom into” the data

The sensor data is a JavaScript object with several properties. Many of these properties are arrays. In this section, you will read one property from the object and one value from an array.

1. Modify the call to console.log to print just the orientation data. (The orientation data is in the property named euler.) Move the IMU, and observe how this value changes.
2. The value of the euler property is an array of yaw, pitch, and roll. Modify the code in the call to console.log to print just one of these.

E. Use the sensor data in the sketch

To use the IMU data in a sketch, add another global variable. The function called by onSensorData stores sensor data in this variable, and the draw function reads it.

1. Choose a variable name. Define a global variable with this name and initialize it to null. This value means that no sample has arrived yet.
2. Modify handleSensorData to set this variable to the latest sample data. (You can decide whether the variable is set to the entire sample, just the orientation array, or a single value from the orientation array.)
3. Modify draw to make use of the value. The drawing should do something that depends on the value.

Suggestion: Use the p5.js rotate function to rotate a shape or image according to the value of one of the sensor readings. You will run into two challenges: (1) The sensor’s Euler angles are in degrees, while the rotate function expects angles in radians. (2) p5.js rotation is around the upper left corner, at (0, 0). In order to rotate around a different point, you will need to use the translate function.

Note: Code that attempts to access the data may produce an error or unexpected results if it is run before the first sample arrives from the IMU. You can avoid this issue by testing whether the data is null; for example: if (…variable name… !== null) { …your code here… }.
